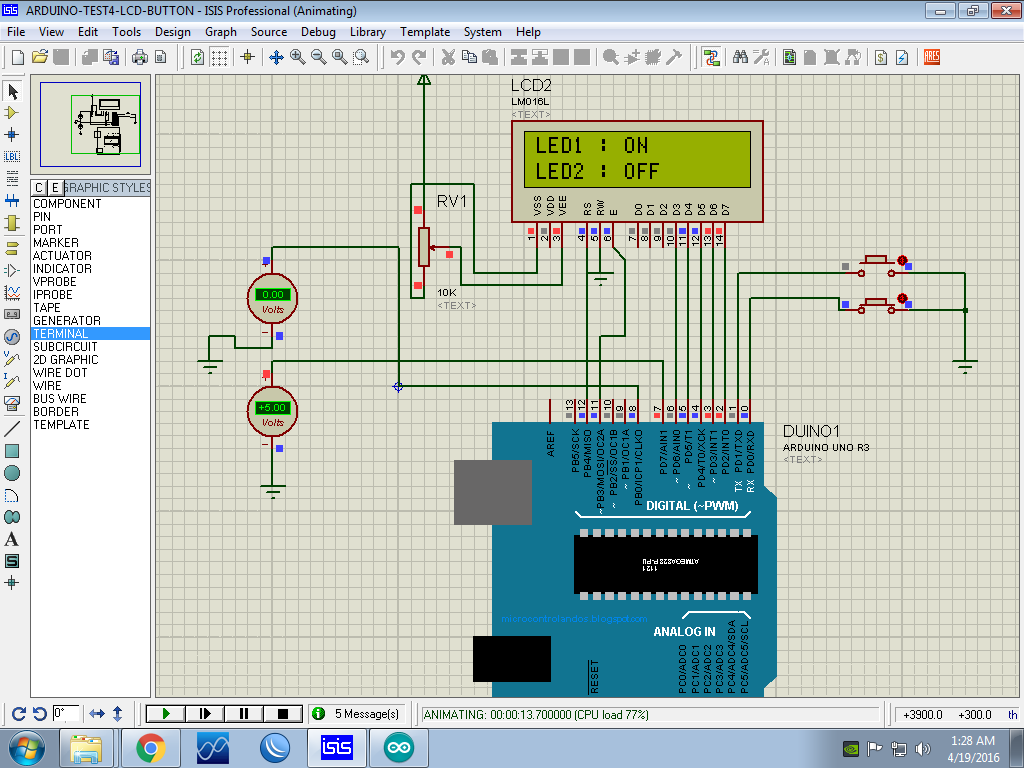

Belajar Arduino LCD 16×2 dan Button

Dah lama ngga maen si arduino … pengen belajar mikrokontroler tapi bingung darimana .. avr studio 4 dah ada isis dah ada bascom dah ada 8951 dah ada tapi masih puyeng kawinin dengan isis ..

dan ternyata ane masih emerasa gampang dengan arduino … so ini koding acak2an baru2 coba aja …
jangan di ketawain ya .. ini anak teka baru belajar … kolding2an … heheh

mohon pencerahannya … berbagi itu indah loh .. 😀

/*
  The circuit:
 * LCD RS pin to digital pin 12
 * LCD Enable pin to digital pin 11
 * LCD D4 pin to digital pin 5
 * LCD D5 pin to digital pin 4
 * LCD D6 pin to digital pin 3
 * LCD D7 pin to digital pin 2
 * LCD R/W pin to ground
 * LCD VSS pin to ground
 * LCD VCC pin to 5V
 * 10K resistor:
 * ends to +5V and ground
 * wiper to LCD VO pin (pin 3)
 */
// include the library code:
#include // initialize the library with the numbers of the interface pins
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);
const int buttonPin  = 0;     // the number of the pushbutton pin
const int buttonPin1 = 1;     // the number of the pushbutton pin
const int ledPin     = 7;
const int ledPin1    = 8;      // the number of the LED pin
// variables will change:
int buttonState = 0;         // variable for reading the pushbutton status
int buttonState1 = 0;
void setup() {
// set up the LCD’s number of columns and rows:
lcd.begin(16, 2);
lcd.print(“LED1 : STATUS “);// Print a message to the LCD.
lcd.setCursor(0, 1);
lcd.print(“LED2 : STATUS”);// Print a message to the LCD.
lcd.display();
delay(5000);
  // initialize the LED pin as an output:
pinMode(ledPin, OUTPUT);
pinMode(ledPin1, OUTPUT);
  // initialize the pushbutton pin as an input:
pinMode(buttonPin, INPUT);
pinMode(buttonPin1, INPUT);
}
void loop() {
// read the state of the pushbutton value:
buttonState = digitalRead(buttonPin);
// check if the pushbutton is pressed.
// if it is, the buttonState is HIGH:
if (buttonState == HIGH) {
// turn LED on:
    digitalWrite(ledPin, LOW);
  lcd.begin(16, 2);
  lcd.print(“LED1 : OFF”);// Print a message to the LCD.
  } else {
// turn LED off:
    digitalWrite(ledPin, HIGH);
  lcd.begin(16, 2);
  lcd.print(“LED1 : ON”);// Print a message to the LCD.
  }
 buttonState1 = digitalRead(buttonPin1);
  // check if the pushbutton is pressed.
  // if it is, the buttonState is HIGH:
  if (buttonState1 == HIGH) {
    // turn LED on:
    digitalWrite(ledPin1, LOW);
  lcd.setCursor(0, 1);
  lcd.print(“LED2 : OFF”);// Print a message to the LCD.
  } else {
    // turn LED off:
    digitalWrite(ledPin1, HIGH);
  lcd.setCursor(0, 1);
  lcd.print(“LED2 : ON”);// Print a message to the LCD.
  }
  lcd.display();
  delay(1000);

}
